All stock codes associated to this product
GBBSi5H6200, GB-BSi5H-6200, SYGBSI5H6200, SYG-BSI5H-6200, 4719331251765
Overview
- Features Latest Intel® 6th generation Core Processors
- Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
- Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- 1 x M.2 SSD (2280) slot
- 2 x SO-DIMM DDR3L slot (1600 MHz)
- Intel® IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
- HDMI plus Mini DisplayPort Outputs (Supports dual displays)
- Intel® HD Graphics 520
- 4 x USB 3.0
- Intel Gigabit lan
- Handset and Microphone jack
- VESA mounting Bracket (75 x 75mm + 100 x 100mm)
* Wireless module inclusion may vary based on local distribution.
Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish glass surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
Dual Display
With support for HDMI and DisplayPort, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional and home environments, or in any number of industrial and commercial multi-display applications.
Flexible Compact PC Kit
The BRIX is sold as a DIY PC kit, shipping with a NGFF M.2 Wi-Fi module pre-installed, plus a power adapter and cable conforming to local standards. Requiring only system memory and M.2 SSD, the BRIX gives users the flexibility to independently choose integrated storage and system memory size, without the trouble of sourcing components that are not widely available on the retail market.

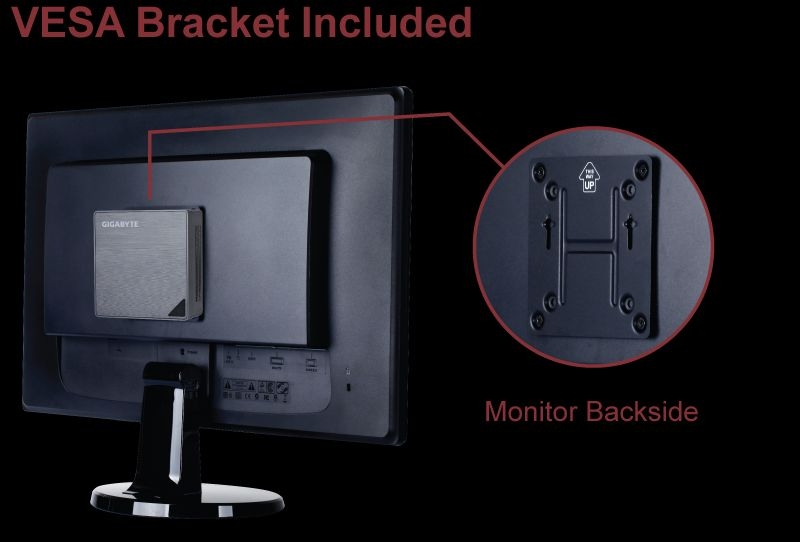

VESA Support
Bundled with a VESA bracket, the BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

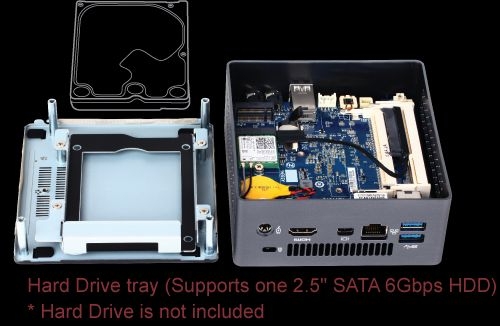

2.5” SATA Hard Drive Support
Utilizing SATA III 6Gb/s high speed data transfer technology, the GIGABYTE BRIX s supports the installation of one 2.5” SATA hard drive and one M.2 SSD module. This allows for optimized storage configurations which combine fast SSD performance with larger capacity hard drives.
Specifications
| Dimension | 46.8 mm x 112.6 mm x 119.4 mm (1.84" x 4.43" x 4.7") |
| Motherboard Size | 105 x 110 mm |
| CPU | Intel® Core™ i5-6200U
2.3GHz / 2.8GHz |
| Memory | 2 x SO-DIMM DDR3L slots (DDR3 1.35V)
1600MHz
Max. 16GB |
| LAN | Gigabit LAN (Intel i219V) |
| Audio | Realtek ALC255 |
| Graphics | Intel® HD Graphics 520 |
| HDMI Resolution (Max.) | 4096 x 2160 @ 24Hz |
| Mini DP Resolution (Max.) | 3840 x 2160 @ 60Hz |
| Expansion Slots | 1 x M.2 slot (2280_storage)
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |

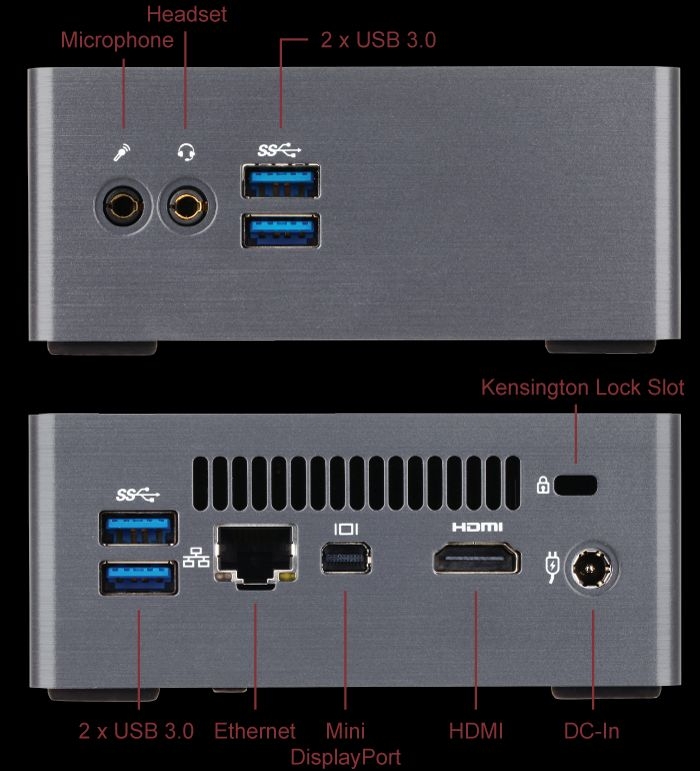

| Front I/O | 2 x USB 3.0
1 x head phone Jack
1 x Mic phone Jack |
| Rear I/O | 1 x HDMI (1.4a)
1 x Mini DisplayPort (1.2)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot |
| Power Supply | Input: AC 100-240V
Output: DC 19V
33.42A |
| VESA | Bracket included
Supports 75 x 75 and 100 x 100 mm |
| Wifi Card | Intel® Dual Band Wireless-AC 3165 |
| Storage | Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3) |
| Support OS | WIN7 32/64bit
WIN8.1 64bit
WIN10 64bit |
| Environment | System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C |
